| 型号规格 | 容值表 | 产品规格书 | REACH测试报告 | RoHS报告书 |
|---|---|---|---|---|
|

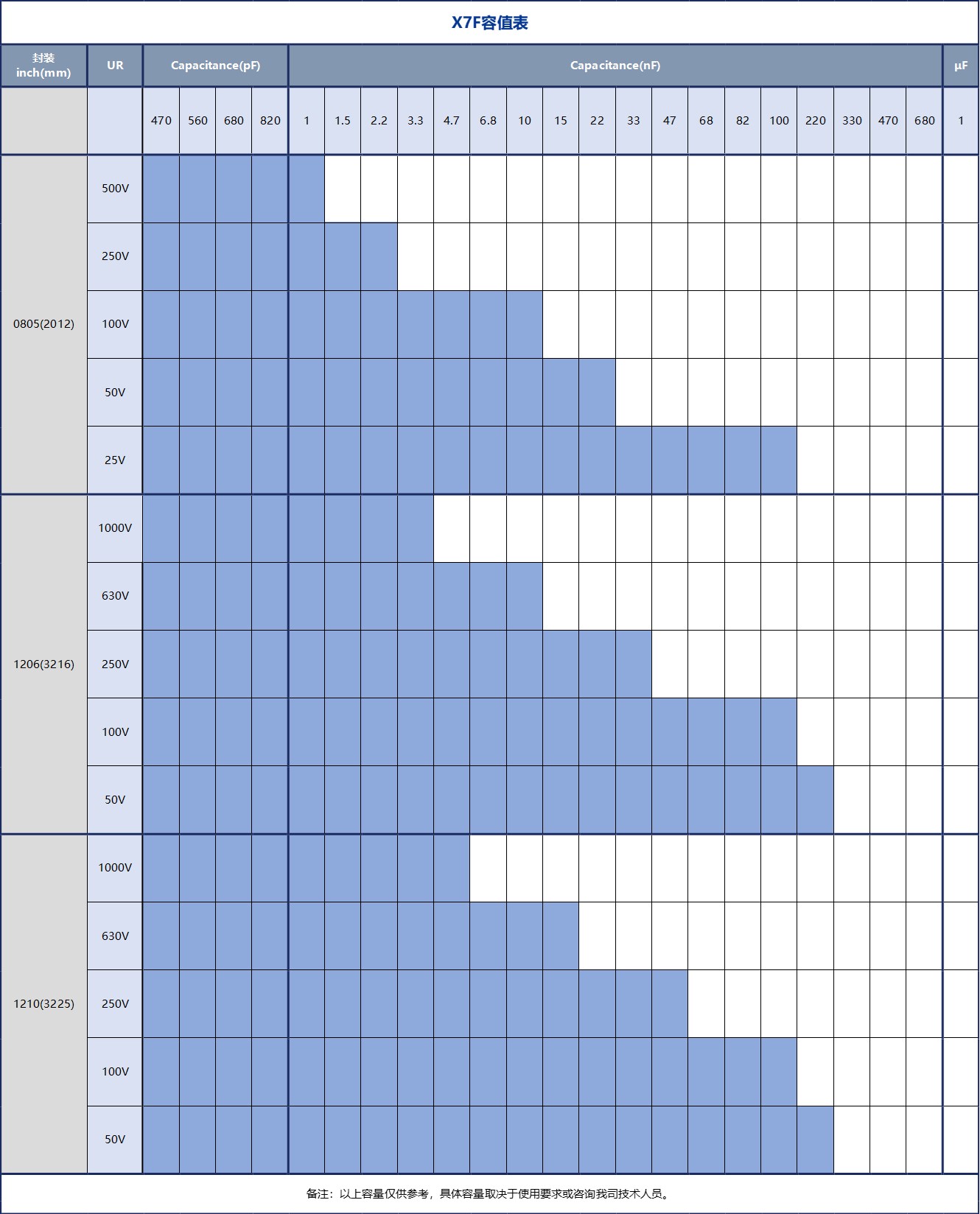

X7F |
 |
 |
|
|
| 型号 | 规格书 | 外观 | 长宽（mm） | 厚度（mm） | 温度特性与电容变化 | 静电容量 | 额定电压 | 电容公差 | 备注 |
|---|---|---|---|---|---|---|---|---|---|
|
C2012X7F101K251PA |
|
 |
长:2.00±0.20 宽:1.25±0.20 |
0.60±10 |
X7F ±7.5% |
100pF |
250V |
±10% |
|
|
C2012X7F871K251PB |
|
|
长:2.00±0.20 宽:1.25±0.20 |
0.80±10 |
X7F ±7.5% |
870pF |
250V |
±10% |
|
|
C2012X7F152K251PA |
|
|
长:2.00±0.20 宽:1.25±0.20 |
0.60±10 |
X7F ±7.5% |
1500pF |
250V |
±10% |
|
|
C2012X7F222K201PA |
|
|
长:2.00±0.20 宽:1.25±0.20 |
0.60±10 |
X7F ±7.5% |
2200pF |
200V |
±10% |
|
|
C2012X7F272J500PA |
|
|
长:2.00±0.20 宽:1.25±0.20 |
0.60±10 |
X7F ±7.5% |
2700pF |
500V |
±7.5% |
|
|
C3216X7F101K102PB |
|
|
长:3.20±0.20 宽:1.60±0.20 |
0.80±10 |
X7F ±7.5% |
100pF |
1000V |
±10% |
|
|
C3216X7F101K102ED |
|
|
长:3.20±0.20 宽:1.60±0.20 |
1.25±0.10 |
X7F ±7.5% |
100pF |
1000V |
±10% |
失效开路 |
|
C3216X7F221K102PB |
|
|
长:3.20±0.20 宽:1.60±0.20 |
0.80±10 |
X7F ±7.5% |
220pF |
1000V |
±10% |
|
|
C3216X7F331K102PB |
|
|
长:3.20±0.20 宽:1.60±0.20 |
0.80±10 |
X7F ±7.5% |
330pF |
1000V |
±10% |
|
|
C3216X7F471K102PB |
|
|
长:3.20±0.20 宽:1.60±0.20 |
0.80±10 |
X7F ±7.5% |
470pF |
1000V |
±10% |
|
|
C3216X7F871K751PB |
|
|
长:3.20±0.20 宽:1.60±0.20 |
0.80±10 |
X7F ±7.5% |
870pF |
750V |
±10% |
|
|
C3216X7F102K102PB |
|
|
长:3.20±0.20 宽:1.60±0.20 |
0.80±10 |
X7F ±7.5% |
1000pF |
1000V |
±10% |
|
|
C3216X7F102K751PB |
|
|
长:3.20±0.20 宽:1.60±0.20 |
0.80±10 |
X7F ±7.5% |
1000pF |
750V |
±10% |
|
|
C3216X7F152K202PB |
|
|
长:3.20±0.20 宽:1.60±0.20 |
0.80±10 |
X7F ±7.5% |
1500pF |
2000V |
±10% |
|
|
C3216X7F222K751PB |
|
|
长:3.20±0.20 宽:1.60±0.20 |
0.80±10 |
X7F ±7.5% |
2200pF |
750V |
±10% |
|
|
C3216X7F472K751ED |
|
|
长:3.20±0.20 宽:1.60±0.20 |
1.25±0.10 |
X7F ±7.5% |
4700pF |
750V |
±10% |
|
|
C3216X7F103K631EG |
|
|
长:3.20±0.20 宽:1.60±0.20 |
1.60±0.20 |
X7F ±7.5% |
10000pF |
630V |
±10% |
|
|
C3216X7F153K101ED |
|
|
长:3.20±0.20 宽:1.60±0.20 |
1.25±0.10 |
X7F ±7.5% |
15000pF |
100V |
±10% |
|
|
C3216X7F223K251ED |
|
|
长:3.20±0.20 宽:1.60±0.20 |
1.25±0.10 |
X7F ±7.5% |
22000pF |
250V |
±10% |
|
|
C3216X7F223K101ED |
|
|
长:3.20±0.20 宽:1.60±0.20 |
1.25±0.10 |
X7F ±7.5% |
22000pF |
100V |
±10% |
|
|
C3216X7F333K201ED |
|
|
长:3.20±0.20 宽:1.60±0.20 |
1.25±0.10 |
X7F ±7.5% |
33000pF |
200V |
±10% |
|
|
C3216X7F473K101ED |
|
|
长:3.20±0.20 宽:1.60±0.20 |
1.25±0.10 |
X7F ±7.5% |
47000pF |
100V |
±10% |
|
|
C3216X7F473K151ED |
|
|
长:3.20±0.20 宽:1.60±0.20 |
1.25±0.10 |
X7F ±7.5% |
47000pF |
150V |
±10% |
|
|
C3216X7F683K101ED |
|
|
长:3.20±0.20 宽:1.60±0.20 |
1.25±0.10 |
X7F ±7.5% |
68000pF |
100V |
±10% |
|
|
C3216X7F683K151ED |
|
|
长:3.20±0.20 宽:1.60±0.20 |
1.25±0.10 |
X7F ±7.5% |
68000pF |
150V |
±10% |
|
|
C3216X7F104K101ED |
|
|
长:3.20±0.20 宽:1.60±0.20 |
1.25±0.10 |
X7F ±7.5% |
100000pF |
100V |
±10% |
|
|
C3216X7F104K201ED |
|
|
长:3.20±0.20 宽:1.60±0.20 |
1.25±0.10 |
X7F ±7.5% |
100000pF |
200V |
±10% |
|
|
C3216X7F104K201EG |
|
|
长:3.20±0.20 宽:1.60±0.20 |
1.60±0.20 |
X7F ±7.5% |
100000pF |
200V |
±10% |
|
| 型号规格 | 容值表 | 产品规格书 | REACH测试报告 | RoHS报告书 |
|---|---|---|---|---|
|

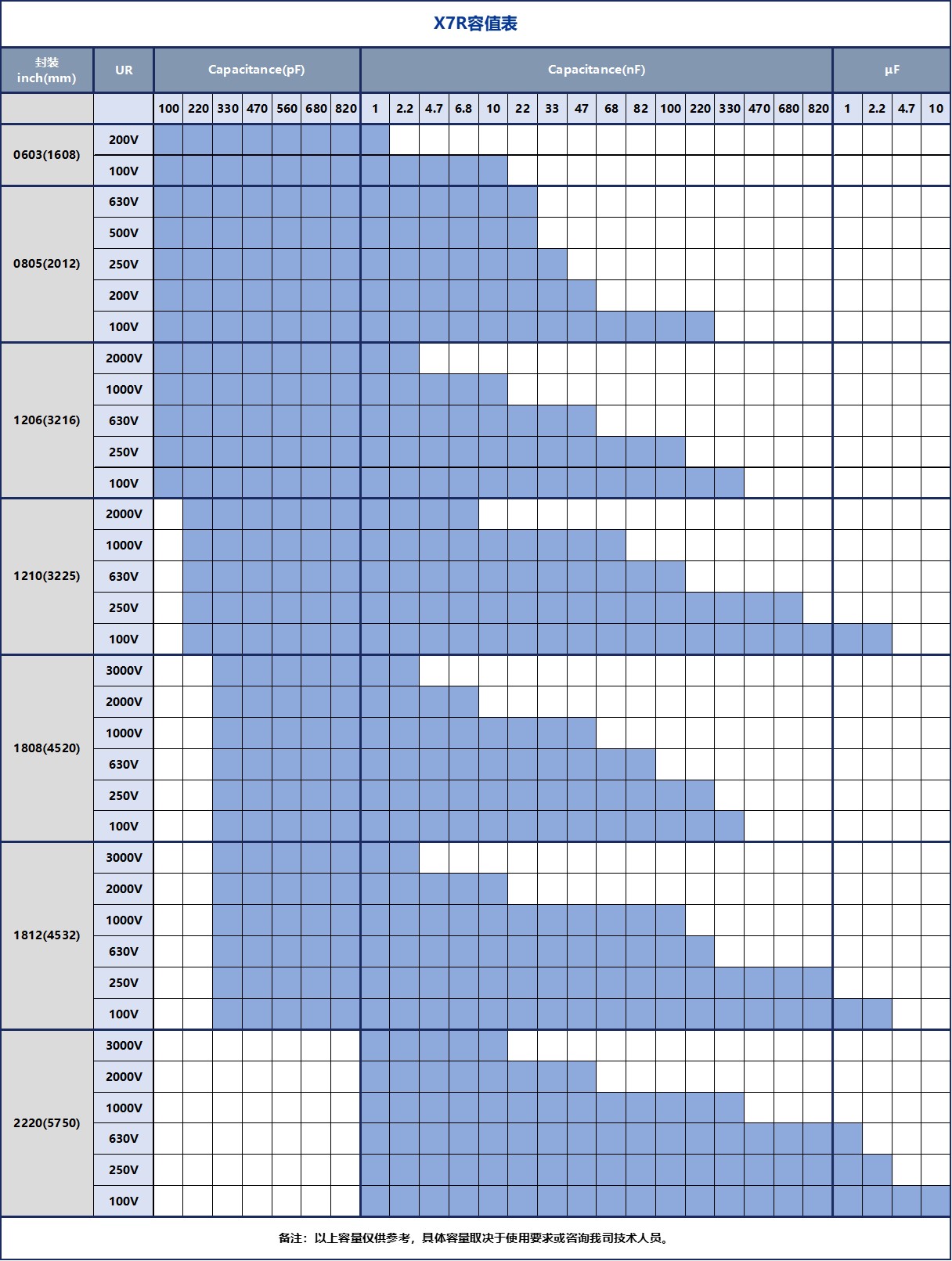

X7R |
 |
|
|
|
| 型号规格 | 容值表 | 产品规格书 | REACH测试报告 | RoHS报告书 |
|---|---|---|---|---|
|

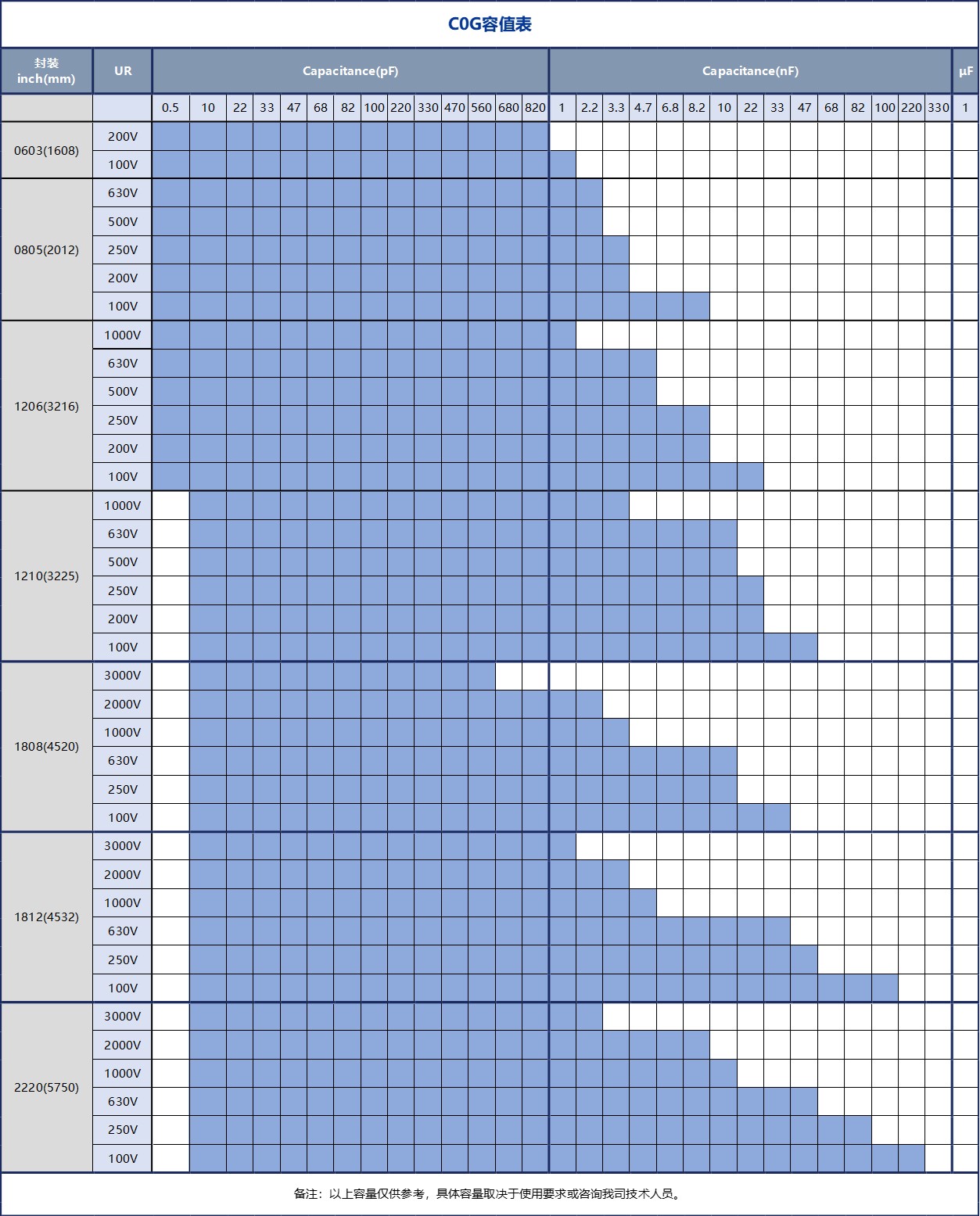

C0G |
 |
|
|
|
| 型号规格 | 容值表 | 产品规格书 | REACH测试报告 | RoHS报告书 |
|---|---|---|---|---|
|
X5R |
|
|
|
|
